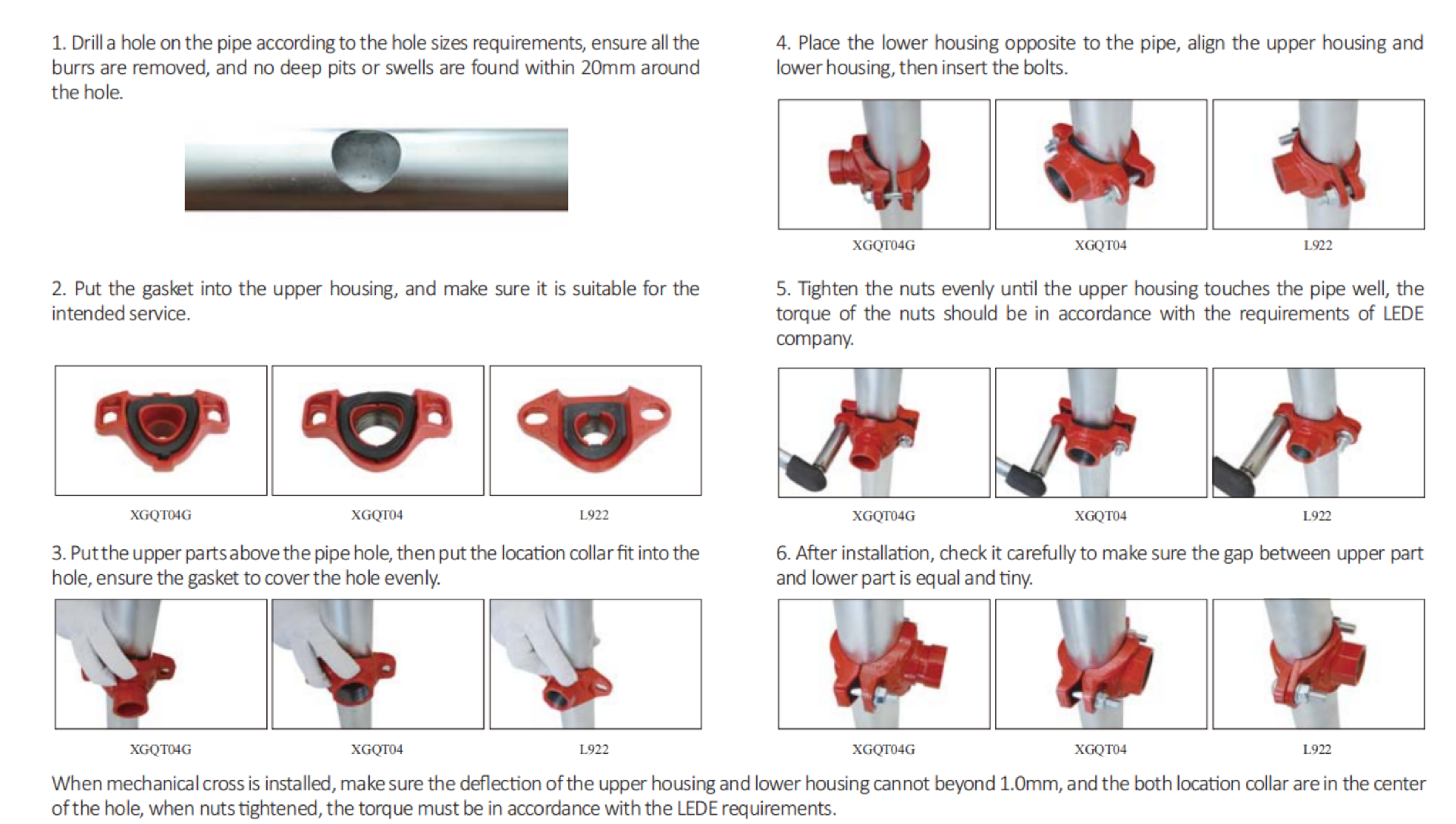

The Model L922 Saddle-Lets is the ideal outlet fiƫ ng for direct connecƟ ons to sprinkler heads, drop nipples and/or gauges. No need for welding, just cut or drill a hole at the desired outlet locaƟ on. PosiƟ on the Saddle-Let so that the locaƟ ng collar fits within the hole, then Ɵghten the upper and lower housings with bolts and nuts. The Saddle-Let comes with a standard black finish or as an opƟ on can be supplied electro zinc plated or painted orange. The Saddle-Let allows full bore flow with pressure rates to 300 psi (20 bar).
Nominal Size mm/in | Hole Dia.Ŧ +1,-0 /+0.04,-0 | Dimensions - mm/in | Take-Out T/D mm/in | Bolt Size in | Bolt Torque N-M/Lb-Ft | ||
A | B | C | |||||
25×15 | 24 | 28 | 93 | 48 | 29 | 3/8Φ | 30-40 |
1x1/2 | 0.95 | 1.10 | 3.66 | 1.89 | 1.14 | U-Bolt | 22-29 |
32×15 | 30.00 | 45 | 98 | 65 | 33 | 3/8Φ | 30-40 |
11/4x1/2 | 1.18 | 1.77 | 3.86 | 2.56 | 1.30 | U-Bolt | 22-29 |
32×20 | 30.00 | 45 | 98 | 65 | 32.5 | 3/8Φ | 30-40 |
11/4x3/4 | 1.18 | 1.77 | 3.86 | 2.56 | 1.28 | U-Bolt | 22-29 |
32×25 | 30.00 | 54 | 98 | 65 | 38.6 | 3/8Φ | 30-40 |
11/4x1 | 1.18 | 2.13 | 3.86 | 2.56 | 1.52 | U-Bolt | 22-29 |
40×15 | 30.00 | 48 | 105.6 | 65 | 36.1 | 3/8Φ | 30-40 |
11/2x1/2 | 1.18 | 1.89 | 4.16 | 2.56 | 1.42 | U-Bolt | 22-29 |
40×20 | 30.00 | 48 | 105.6 | 65 | 35.6 | 3/8Φ | 30-40 |
11/2x3/4 | 1.18 | 1.89 | 4.16 | 2.56 | 1.40 | U-Bolt | 22-29 |
40×25 | 30.00 | 57 | 105.6 | 65 | 41.7 | 3/8Φ | 30-40 |
11/2x1 | 1.18 | 2.24 | 4.16 | 2.56 | 1.64 | U-Bolt | 22-29 |
50×15 | 30.00 | 54 | 125 | 65 | 42.2 | 3/8Φ | 30-40 |
2x1/2 | 1.18 | 2.13 | 4.92 | 2.56 | 1.66 | U-Bolt | 22-29 |
50×20 | 30.00 | 54 | 125 | 65 | 41.7 | 3/8Φ | 30-40 |
2x3/4 | 1.18 | 2.13 | 4.92 | 2.56 | 1.64 | U-Bolt | 22-29 |
50×25 | 30.00 | 62 | 125 | 65 | 47.8 | 3/8Φ | 30-40 |
2×1 | 1.18 | 2.44 | 4.92 | 2.56 | 1.88 | U-Bolt | 22-29 |
65×15 | 30.00 | 61 | 139 | 65 | 48.5 | 3/8Φ | 30-40 |
21/2x1/2 | 1.18 | 2.40 | 5.47 | 2.56 | 1.91 | U-Bolt | 22-29 |
65×20 | 30.00 | 61 | 139 | 65 | 48 | 3/8Φ | 30-40 |
21/2x3/4 | 1.18 | 2.40 | 5.47 | 2.56 | 1.89 | U-Bolt | 22-29 |
65×25 | 30.00 | 71 | 139 | 65 | 54.1 | 3/8Φ | 30-40 |
21/2x1 | 1.18 | 2.80 | 5.47 | 2.56 | 2.13 | U-Bolt | 22-29 |
