MODEL XGQT4 PUSH-ON COUPLING-Shandong Lede Electromechanical

Description

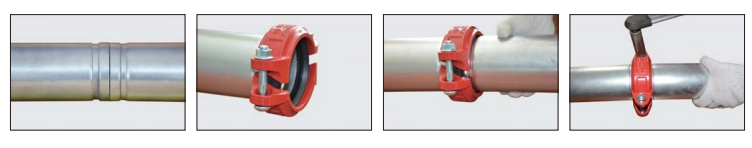

The Model XGQT4 PUSH-ON rigid couplingis a trulyrigid grooved pipe coupling which, unlike other groovedcouplings, does not allow for any axial movement,angularmovement and/or rotational movement under normalservice conditions. push-on coupling(patent pending)allows the pipe to move into the couplings directly withoutloosing components. Support and hanging requirementscorrespond to ANSI B31.1, B31.9and NFPA13.

Caution: Pipe ends must be cut square so that the pipeends butt together.

Applications:

· All piping including mechanical rooms where no angularor axial movement is desired

· Dry-system fire protection pipelines

· Stainless steel piping for potable water and foodindustries (epoxy coated housings with NSF61 certifiedgasket and type 316 bolts and silicone bronze nuts)

· Hot water systems

Sizes available:32mm-200mm/1-1/4"~8”

Working Pressure: Up to 20 bar/300 psi

Nominal Size mm/in	Pipe O.D. mm/in	Max.Working Pressure Bar/PSI	Max.End Load KN/Lbs	Axial Displacement mm/in	Dimensions			Bolts

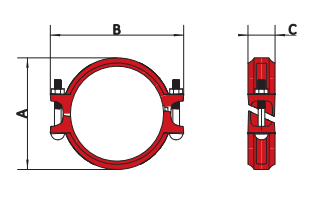

Nominal Size mm/in	Pipe O.D. mm/in	Max.Working Pressure Bar/PSI	Max.End Load KN/Lbs	Axial Displacement mm/in	A mm/in	B mm/in	C mm/in	No.	Size mm/in
502	60.3 2.375	70 1000	19.984420	0-3.6 0014	90 3.54	145	49	2	M16×80
502	60.3 2.375	70 1000	19.984420	0-3.6 0014	90 3.54	5.71	1.93	2	5/8×3-1/8
65 21/2	73 2.875	70 1000	29.286480	0-3.6 0014	102 4.02	168 6.61	49 1.93	2	M16×80 5/8×3-1/8
803	88.9 3.5	70 1000	43.439610	0-3.6 0014	123 4.84	188 7.40	49 1.93	2	M16×80 5/8×3-1/8
1004	114.3 4.5	70 1000	71.7915890	0-6.4 0-0.25	153 6.02	216 8.50	54 2.13	2	M20×110 3/4×4-1/3
1506	168.3 6.625	70 1000	155.6534450	0-6.4 0-0.25	218 8.58	295 11.61	57 2.24	2	M22x130 7/85-1/8
2008	219.1 8.625	55 800	207.2646710	0-6.4 0-0.25	275 10.83	364 14.33	70 2.76	2	M24×90 1×3-1/2
25010	273 10.75	55 800	321.7872570	0-6.4 0-0.25	334 13.15	424 16.69	75 2.95	2	M24×90 1x3-1/2
30012	323.9 12.75	55 800	45295 102080	0-6.4 0-0.25	390 15.35	480 18.90	75 2.95	2	M24×90 1×3-1/2
