MODEL XGQT2 LIGHT FLEXIBLE COUPLING-Shandong Lede Electromechanical

Description

The Model XGQT2 is a standard flexible couplingfor use in a variety of general piping applications ofmoderate pressure services.The Model XGQT2 couplingsfeatures flexibility that can deal with misaignment,distortion,thermal stress,vibration and noise and alsoresist seismic tremors.With the use of Model XGQT2couplings you can even design a curved layout.

Sizes available:25mm-600mm/1“~24”Working Pressure:Up to 20 bar/300 psi

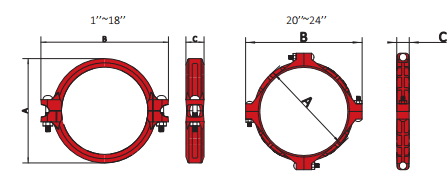

Nominal Size mm/in	Actual 0.D. mm/in	Max. Working Pressure Bar/PSI	Max.End Load KN/Lbs	Axial Displacement mm/in	Angular Movement		Dimensions			Bolt
Nominal Size mm/in	Actual 0.D. mm/in	Max. Working Pressure Bar/PSI	Max.End Load KN/Lbs	Axial Displacement mm/in	Per Coupling Degree 门	Per Pipe in/ft	A mm/in	B mm/in	C mm/in	Size mm/in
251	33.7 1.327	20 300	1.80405	1.6 0.0625	2°-45'	0.5848	55 2.17	97 3.82	45 1.77	M10×40 3/8x1-1/2
32 11/4	424 1.669	20 300	2.92656	1.6 0.0525	2°-10	0.4638	63.5 2.50	107.5 4.23	45 1.77	M10×45 3/8x1-3/4
40 11/2	48.3 1.9	20 300	3.79852	1.6 0.0625	1°-54	0433	69 2.72	114 4.49	45 1.77	M10×45 3/8x1-3/4
502	60.3 2.375	20 300	5.911327	1.6 0.0525	1°-31	0.3227	83.6 3.29	124 4.88	46 1.81	M10×55 3/8×2-1/8
65 21/2	73 2.875	20 300	8.661945	1.6 0.0525	1°-15	0.2622	98 3.86	137 5.39	46 1.81	M10×55 3/8×2-1/8
65 21/2	76.13	20 300	9.412114	1.6 0.0525	1°-12	0.2521	98 3.86	139 5.47	46 1.81	M10×55 3/8×2-1/8
803	88.9 3.5	20 300	12.842885	1.6 0.0625	1°-02	0.2218	114 4.49	156 6.14	46 1.81	M10×55 3/8×2-1/8
1004	108 4.25	20 300	18.944258	3.2 0.125	1°-42	0.3630	138 5.43	186 7.32	50 1.97	M12×65 1/2×2-5/8
1004	114.3 4.5	20 300	21.224769	3.2 0.125	1°-36	0.3428	142 5.59	189 7.44	50 1.97	M12×65 1/2×2-5/8
1255	133 5.25	20 300	28.736457	3.2 0.125	1°-23	0.2924	164 6.46	213 8.39	50 1.97	M12×65 1/2×2-5/8
1255	139.7 5.5	20 300	31.707124	3.2 0.125	1°-18	0.2723	170 6.69	222 8.74	50 1.97	M12×65 1/2×2-5/8
1255	141.3 5.563	20 300	32.437288	3.2 0.125	1°-18	0.2723	170 6.69	218 8.58	50 1.97	M12×65 1/2×2-5/8
1506	159 6.25	20 300	41.069229	3.2 0.125	1°-09	0.2420	192 7.56	244 9.61	50 1.97	M12×65 1/2×2-5/8
1506	165.1 6.5	20 300	44.279950	3.2 0.125	1°-07	0.2420	196 7.72	244 9.61	50 1.97	M12×65 1/2×2-5/8
1506	168.3 6.625	20 300	46.0010340	3.2 0.125	1°-05	0.2319	198 7.80	251 9.88	50 1.97	M12×65 1/2×2-5/8
2008	216.3 8.515	20 300	75.9917079	3.2 0.125	0²-50'	0.1815	254 10.00	340 13.39	62 2.44	M20×90 3/4×3-1/2
2008	219.1 8.625	20 300	77.9717524	3.2 0.125	0²-50'	0.1815	256 10.08	316 1244	60 2.36	M16×80 5/8×3-1/8
25010	267.4 10.527	20 300	116.1326101	3.2 0.125	0²-50'	0.1412	313 12.32	400 15.75	64 2.52	M20×90 3/4x3-1/2
25010	273.0 10.75	20 300	1210527206	3.2 0.125	0²-50'	0.1412	319 12.56	393 15.47	64 2.52	M20×90 3/4×3-1/2
30012	318.5 12.539	20 300	164.7637031	3.2 0.125	0²-50'	0.1210	368 14.49	464 18.27	64 2.52	M22×110 7/8x×4-1/3
30012	323.9 12.75	20 300	170.3938297	3.2 0.125	0²-50'	0.1210	374 14.72	453 1783	65 2.56	M20×110 3/4×4-1/3
35014	355.614	20 300	198.5346150	3.2 0.125	0°-31	0.06 4.5	410 16.14	510 2008	75 2.95	M22×110 7/8x4-1/3
35014	377 14.843	20 300	230.8451883	3.2 0.125	0²-29	0.06 4.5	428 16.85	520 20.47	75 2.95	M22×140 7/8×5-1/2
40016	406.416	20 300	259.3060280	3.2 0.125	0²-27	0.054	459 18.07	555 21.85	75 2.95	M22×140 7/8×5-1/2
40016	426 16.771	20 300	294.7466246	3.2 0.125	0²-25	0.054	480 18.90	572 22.52	75 2.95	M22×140 7/8×5-1/2
45018	457.218	20 300	3278976300	3.2 0.125	0²-24	0.04 3.5	516 20.31	606 23.86	78 3.07	M22×140 7/8×5-1/2
45018	480.0 18.9	20 300	374.2084106	3.2 0.125	0²-22	0.043	540 21.26	631 24.84	78 3.07	M22×160 7/8x6-13
50020	508.020	20 300	490.60113980	3.2 0.125	0°-19	0.043	567 22.32	674 26.54	78 3.07	M22×140 7/8×5-1/2
55022	558.822	20 300	584.20135640	3.2 0.125	0²-18	0.0325	622 24.49	728 28.66	78 3.07	M22×140 7/8×5-1/2
60024	609.624	20 300	684.72159190	3.2 0.125	0²-17	0.0325	674 26.54	778 30.63	78 3.07	M24×150 1×5-9/10
Deflection orangular movement is the maximum value that a coupling allows under no internal pressure.
