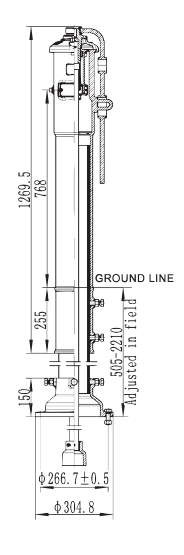

Specification
Indicates if the valve is in the open or shut position.
The indicator post provides a means to operate a buried or other wise inaccessible valve.
The wrench fits over a "U"bracket on the barrel,and may be fixed with a padlock to secure the operating wrench tothe barrel.
Can be supplied to open left or right.
Name of parts | Material |
Body | Cast iron/Ductile iron |
Cover | Cast iron/Ductile iron |
Operating Nut | Bronze C83600 |
Target Carrier Nut | Bronze C83600 |
OPEN Sign | Cast Aluminium |
SHUT Sign | Cast Aluminium |
Window Class | Plexiglas |
Gasket | EPDM |
Plug | Carbon Steel ASTM A105/A105M |
Snap Ring | Carbon Steel AISI1066 |
Eye Bolt | Carbon Steel ASTM A105/A105M |
Wrench | Ductile iron |
Extension Rod | Carbon Steel ASTM A1045 |
Coupling | Ductile iron |
Base Flange | Ductile iron |
Telescoping Barrel | Carbon Steel ASTM A53 |
Bolt | Carbon Steel ASTMA105/A105M |
Nut | Carbon Steel ASTM A105/A105M |
Plain | Carbon Steel ASTM A105/A105M |
Pin | SS304 |
