Style

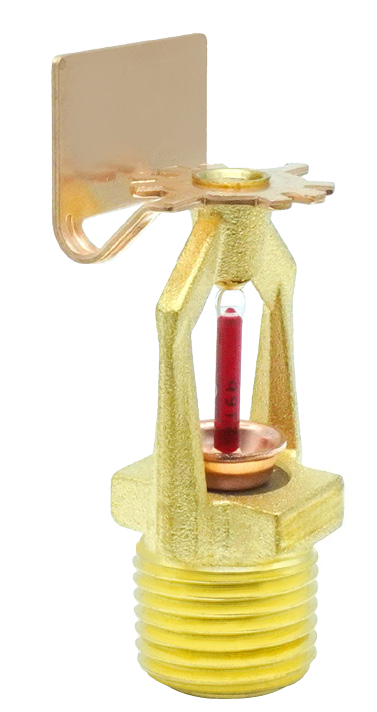

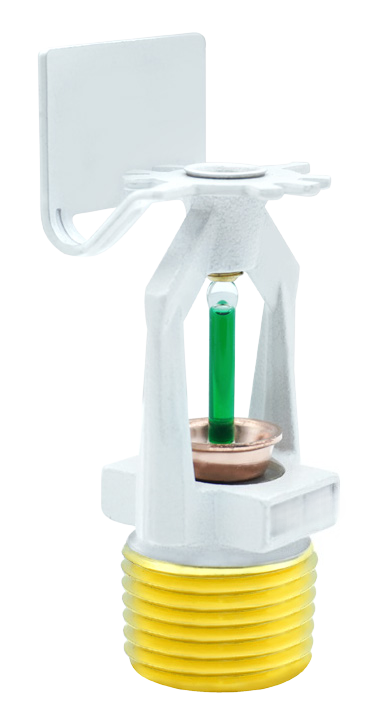

HORIZONTAL SIDEWALL

Response & Bulb Nominal Dia.

Standard Response, Ø5 mm

Quick Response, Ø3 mm

Thread Size [Optional]

NPT1/2 or R1/2

Nominal Orifice Size

1/2 Inch

Nominal K-Factor

5.6 (U.S.)/80 (metric)

Max. Working Pressure

175 psig/1.2 MPa (12 bar)

Factory Hydrostatic Test

100% @ 500psig  (3.4 MPa)

Min. Operating Pressure

7 psig/0.048 MPa (0.48 bar)

Sprinkler Finish [Optional]

Natural Brass/Chrome Plated/White Color Coated

Listings and Approvals

UL(United States)

Temp. Rating

135°F/57°C

155°F/68°C

175°F/79°C

200°F/93°C

Orange

Red

Yellow

Green
