Description
Technical data
Size:DN50~DN200
Working pressure:DN50~DN150362psi,DN200232psi
Valve standard:MSS SP-67
Grooved standard:AWWA C606
Top Flange standard:EN ISO 521
Temperature range:0~80℃
Suitable for indoor and outdoor use
Name of parts | Material |
Body | Ductile iron |
Plug | EPDM |
Driven shaft | 1Cr17Ni2 |
Disc | Ductile iron and EPDM |
Actuating shaft | 1Cr17Ni2 |
Bearing bush | Bronze |
O-rings | EPDM |
Gear operator | Ductile iron and steel |

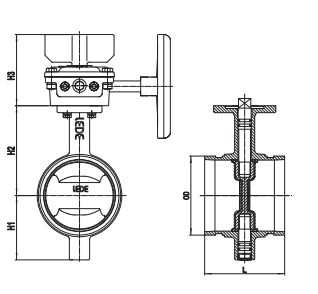

Dimensions | Pressure rating | Size(mm) | ||||||
DN | inch | psi | OD | L | H1 | H2 | H3 | Top Flange |
50 | 2 | 362 | 60.3 | 81 | 56 | 91 | 103 | F05 |
65 | 2.5 | 362 | 73 | 96.8 | 68 | 104 | 103 | F05 |
76.1 | ||||||||
80 | 3 | 362 | 88.9 | 96.8 | 75 | 111 | 103 | F07 |
100 | 4 | 362 | 114.3 | 115.8 | 93 | 130 | 103 | F07 |
125 | 5 | 362 | 139.7 | 147.6 | 111 | 153 | 103 | F07 |
141.3 | 111 | 153 | ||||||
150 | 6 | 362 | 165.1 | 147.6 | 123 | 165 | 103 | F07 |
168.3 | 123 | 165 | ||||||
200 | 8 | 232 | 219.1 | 133.4 | 160 | 194 | 109 | F07 |
